Complete EagleCAD library for XMOS chips.

XCore Project reviews, ideas, videos and proposals.
narutoxela
Active Member
Posts: 46
Joined: Wed Apr 20, 2011 9:30 pm

Complete EagleCAD library for XMOS chips.

Postby narutoxela » Tue Aug 28, 2012 3:06 am

Version: 1
Status: Complete
License: Custom Licence
Download: /files/project_builds/Eagle_XMOS_Lib_COMPLETE.zip

Some people on the forums including my self have a hard time finding EagleCAD libraries for the XMOS chips. So, I'm making a library containing all the current XMOS chips. Also please tell me if there are any mistakes in the library.
Note: EagleCAD 6.0 was used to make this library and is unfortunately uncompatible with older versions of EagleCAD. Sorry for the inconvinience....
Chips included:
XS1-G04B-FB144

XS1-G04B-FB512
XS1-L02A-QF124
XS1-L01A-TQ48

XS1-L01A-LQ64

XS1-L01A-TQ128
XS1-SU1A-FB96

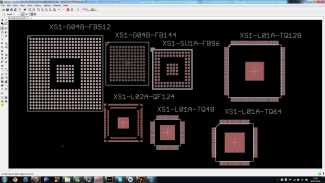

Images:
User avatar
TonyD
XCore Addict
Posts: 234
Joined: Thu Dec 10, 2009 11:11 pm
Location: Newcastle, UK

Postby TonyD » Mon Sep 03, 2012 10:33 am

If they are in version 5, I'll convert them to DesignSpark PCB so we have a common library for both PCB packages
narutoxela
Active Member
Posts: 46
Joined: Wed Apr 20, 2011 9:30 pm

Postby narutoxela » Thu Sep 06, 2012 1:21 am

Ohh sorry! I forgot to mention in what version the library is in, it was made with EagleCAD 6.0
Alenda
New User
Posts: 2
Joined: Wed Aug 01, 2012 8:07 am

Postby Alenda » Wed Oct 17, 2012 6:49 pm

great work, thank you.

You place the center far outside the chip symbol. Is there any reason for this? During PCB-Design this make me crazy to set an move the right center point. :-)
narutoxela
Active Member
Posts: 46
Joined: Wed Apr 20, 2011 9:30 pm

Postby narutoxela » Wed Oct 17, 2012 9:43 pm

That is because thats how i like to make my symbols, i got used to using the upper left pin as the placement point, basically its just preference but i could replace the center marker to the center if you want.
norman
Active Member
Posts: 55
Joined: Wed Jan 11, 2012 2:27 pm

Postby norman » Tue Nov 20, 2012 12:07 pm

hello,

thanks for this library. Have it been fully tested with a mounted fabrication ?
The XS1-L02 is a QFN and mentioned as a QFP in the library... but the layout seem ok.
Is there a reason to not have the "stop" and "cream" option for each pad except the center ground pad ?

thanks!
narutoxela
Active Member
Posts: 46
Joined: Wed Apr 20, 2011 9:30 pm

Postby narutoxela » Thu Nov 22, 2012 12:35 am

Sorry to say but no, i didin't have the chance to test the library hence me asking people to tell me if there are any mistakes in the lib. The "QFP" in the library is just a small mistake and should say QFN (For the L2) so the layout is correct in that way. The reason that there is no "stop" "cream" is the default stop and cream were too big leaving little to no soldermask between the pads so i took them off and i manually added smaller stop and cream layers on top of the pads.

Hope it helps,
Alex
norman
Active Member
Posts: 55
Joined: Wed Jan 11, 2012 2:27 pm

Postby norman » Thu Nov 22, 2012 8:23 am

thanks for those informations, i hope i can tell you in few weeks if the layout works fine or else ...
mikronauts
Member++
Posts: 28
Joined: Sun Aug 28, 2011 5:18 am

Postby mikronauts » Tue Dec 04, 2012 12:34 am

Hi,

First: Thank you for making the library!

I downloaded it, unpacked it, and put it into my eagle 5.12 folder. When I tried to open the library, Eagle said it was corrupted.

Did you happen to build it in Eagle 6.0? If so, that is not backward compatible with Eagle 5.X

Thanks,

Bill
narutoxela
Active Member
Posts: 46
Joined: Wed Apr 20, 2011 9:30 pm

Postby narutoxela » Tue Dec 04, 2012 10:41 pm

Hi bill! Yes, the library was made using EagleCAD 6 (I guess its about time I specify the version of EagleCAD used to make it :P).

Alex
